RFID Reader Security Control Professional Manufacture Three Arm Tripod Turnstile Gate
PRODUCT DESCRIPTIONS
Tripod turnstile is the intelligent access management produced by our company after several years R & D , this
equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading
and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable
performance safety protection devices real-time alarm system, and direction indicator interface, realizing the
access intelligent control and management by the mutual coordination.
TECHNICAL SPECIFICATIONS
| Model | SN-TT03 |
| Size | 1200*280*980mm |
| Material | 1.2mm SS304 |
| Pass Width | 550mm |
| Passage direction | Single directional/Bi-directional |
| Pass rate | 30-35 persons/minute |
| Operating time | 0.2 seconds |
| Power input | AC100-240V,50/60HZ |
| Working voltage | 24V |
| Working humidity | 30%~95% |
| Working temperature | -20℃~+60℃ |
| Working environment | Indoor/outdoor |
| Communication interface | Dry contact |
| Mechanism | Mould machine core+mould bracket+Domestic solenoid |
MAIN FUNCTIONS AND FEATURES
1) The entire system runs smoothly, with a small noise and free of mechanical impact.
2) Semi-automatic mechanism, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit,
or reading card in a way while barring in the other, or read card in a way while free passage in the other.
5) It has automatic function of dropping arm when power off.
6) The equipment is provided with a unified, standard electric interface and is available to be integrated with
various read/write facilities to facilitate the system integration. It is able to realize far end control and management
with the help of administrative computer.
7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard
in accordance with the requirements of the users.
8) Self resetting function, the system will cancel the people passing right when reading the card but not passing,
9) Direction indicator function, showing passing or prohibiting for the people
10) Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing
forcedly; the locking time can be set, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.
12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds,
it will turn again.
Product Tags:
|
|

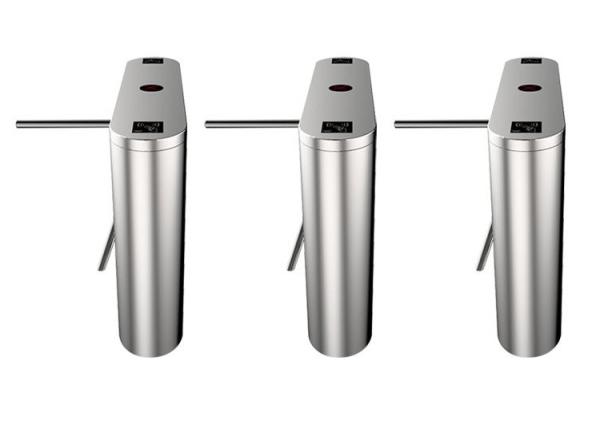

Anti Hit Tripod Turnstile Gate Self Resetting 500mm Arm RFID Reader Images
|
